Product Range
Adjustable U Head Jack
- These are fabricated out of high-grade alloy steel and available in different sizes.
- Adjustable U-Head Jacks are inserted into the top of the Cuplock standards.
- These fittings are available in two types (Hollow and solid).
- Adjustable U-Head Jacks are made of a “U” shaped steel plate, screw jack.
- U Head Screw Jack is a scaffold product that is also used to support the scaffolding structure.
- Adjustable U-Head Jacks are used to provide support for primary beams (traditional timber, steel, H20 beam and aluminum beams).
Adjustable Universal Jack
- Adjustable Universal Jacks are inserted into the top of the Cuplock standards.
- These are available in two types (Hollow and solid)
- Adjustable Universal Jacks are made of a screw jack.
- Adjustable Universal Jacks are a method of adjustment of Cuplock structure by the socket base.
- For support, the load bearing capacity is of up to 74kN.

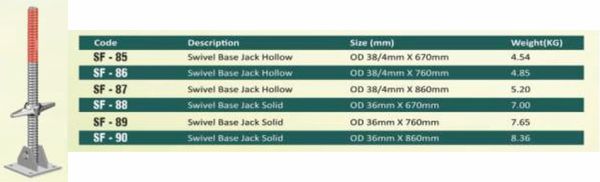

Swivel Adjustable Base Jack
- Adjustable Swivel Base Jacks are available in two types (Hollow and solid).
- Swivel Base Jack is a special type of Adjustable screw jack.
- This leveling jack has a swivel base plate, which makes it a great option to use on sloped surfaces.
- Our Adjustable Base Jacks conform to BS 1139, EN 74.
Fork U-Head Jack
- The adjustable fork head can be inserted into the top of the standard.
- This fitting has a U-Head on top of the adjustable jack.
- This jack is used to support slab formwork and beam formwork in concrete shuttering.
- It is versatile with all formwork beams like wooden beam; aluminum beams and steel beams.
