Product Range

Brosis manufactures Forged Fittings which conform to European Standard EN 74B and are tested to ensure the highest quality. These Fittings are electroplated for a longer life span. We also manufacture Pressed Scaffolding Fittings.

A fixed ninety-degree, rigid coupler by Brosis, used for connecting two 48.3mm tubes at right angles. This heavy-duty fitting is designed for use in all types of scaffolding construction and also in lighting rigs, staging and guard rails.

All the drop forged scaffold fittings are zinc plated for longer life, manufactured to BS 1139 (Part 2) & EN 74 and are tested to ensure the highest level of quality control. Our drop forged doubles are Class B.

This fitting is also available as a pressed steel fitting.

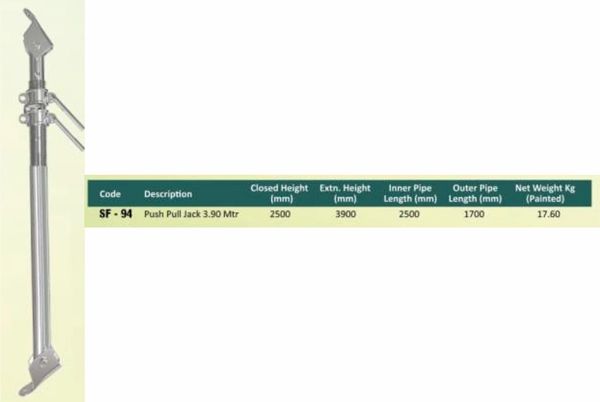

•  The Push Pull Prop consists of two telescopically slidable pipes.

• These Props are Available in a wide range of sizes.

• Push-Pull Props are designed for use wherever an adjustable inclined strut is required.

• The push-pull prop, with swivel end plates, can bear both vertical, diagonal and horizontal loads.

• The displacement can be adjusted by means of a threaded ring nut and a pin inserted into the holes of the inner pipe.

• Push Pull Props are made from 60mm OD x 3.2mm wall thickness and inner tube of 48.3mm OD x 3.2mm wall thickness steel tubes.

• This structure enables it to perform two actions, the regular pushing action (like normal props do) and the pulling action.

• Due to the high strength capability, the push-pull props are used in construction of houses and high-rise buildings.

• This Prop is used for temporary and safe stabilization of structures during the casting step, whether formworks, wooden panels, or prefabricated elements of various types.

• Formwork shoring prop is mainly made up of base plate, outer tube, inner tube, swivel nut, G Pin. It’s structure is simple and flexible, easy to assemble and disassemble.


Outer Tube OD 60mm; Inner Tube OD 48.3mm; Tube thickness 3.2mm.
